ACF-4M MAGNETIC ANTENNA
AMT MAGNETIC SENSOR INDUCTION COIL
Technical Specifications:
| Frequency range, Hz | 0.1-4000 |
| Transfer constant | |
| a. For frequency range 0.5-3000 Hz | 80 mV/nT |
| b. For frequency range 0.1-0.5 Hz | 160 mV/(nT*Hz) |
| Noise level, fT/Sq. root of Hz | |
| a. For frequency 10 Hz | 12 |
| b. For frequency 1000 Hz | 2.5 |
| Dimensions and weight, not more than | 70 mm (diameter) |
| 1110 mm (length) | |
| 5 Kg (weight) | |
| Voltage of external power supply, V | +/- (8-10) |
| Current consumption, mA | 30 |
| Cable length, m, not more than | 10 |

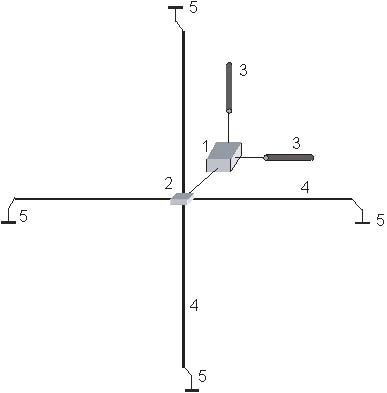

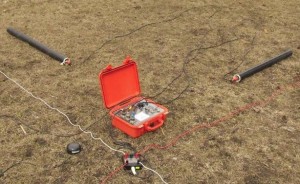

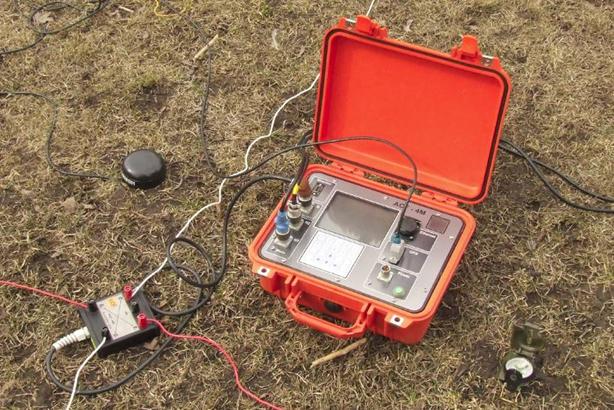

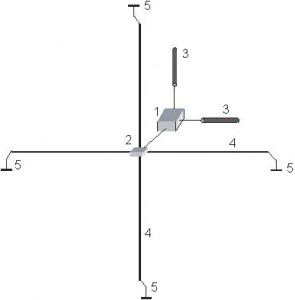

ACF-4M INSTRUMENT AT SOUNDING STATION:
